Name: 90150 Stone Carving Machine
SKU: 0

-- JINAN M-SHINE

GLOBAL HIGH-END CNC EQUIPMENT PROVIDER

90150 Stone Carving Machine

Brand：JINAN M-SHINE

Model：

Category：Stone CNC Machine

Price：

Price Range：

Payment Terms： T/T/Visa/Mastercard/American Express/Discover cards

Supply Capacity：200 sets per month

GET A QUOTE

SEND EMAIL

PRODUCT ADVANTAGES

● 1-2 Days Handling and 7-30 Days Shipping
● 30-Day Money Back Guarantee for Your Purchase
● Free Lifetime Technical Support for End-Users & Dealers
● Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

1 Fine operations such as carving, cutting, and polishing can be performed on various types of stones, including jade, gypsum, etc 2 The Stone CNC engraving and milling machine is compatible with the most advanced CAD/CAM software, which allows users to design complex patterns and floor plans, and allows the machine to calculate accurate tool paths based on these patterns and floor plans 3 Compared with traditional stone carving machines, this machine can improve production efficiency and product quality.

Product Description

Product Description:

1.High temperature tempering treatment, welded steel tube T- type machine bed and gantry, high rigidity, bearing strength better.

2.Y axis with double Leadshine stepper motor and driver, moving stably.

3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.

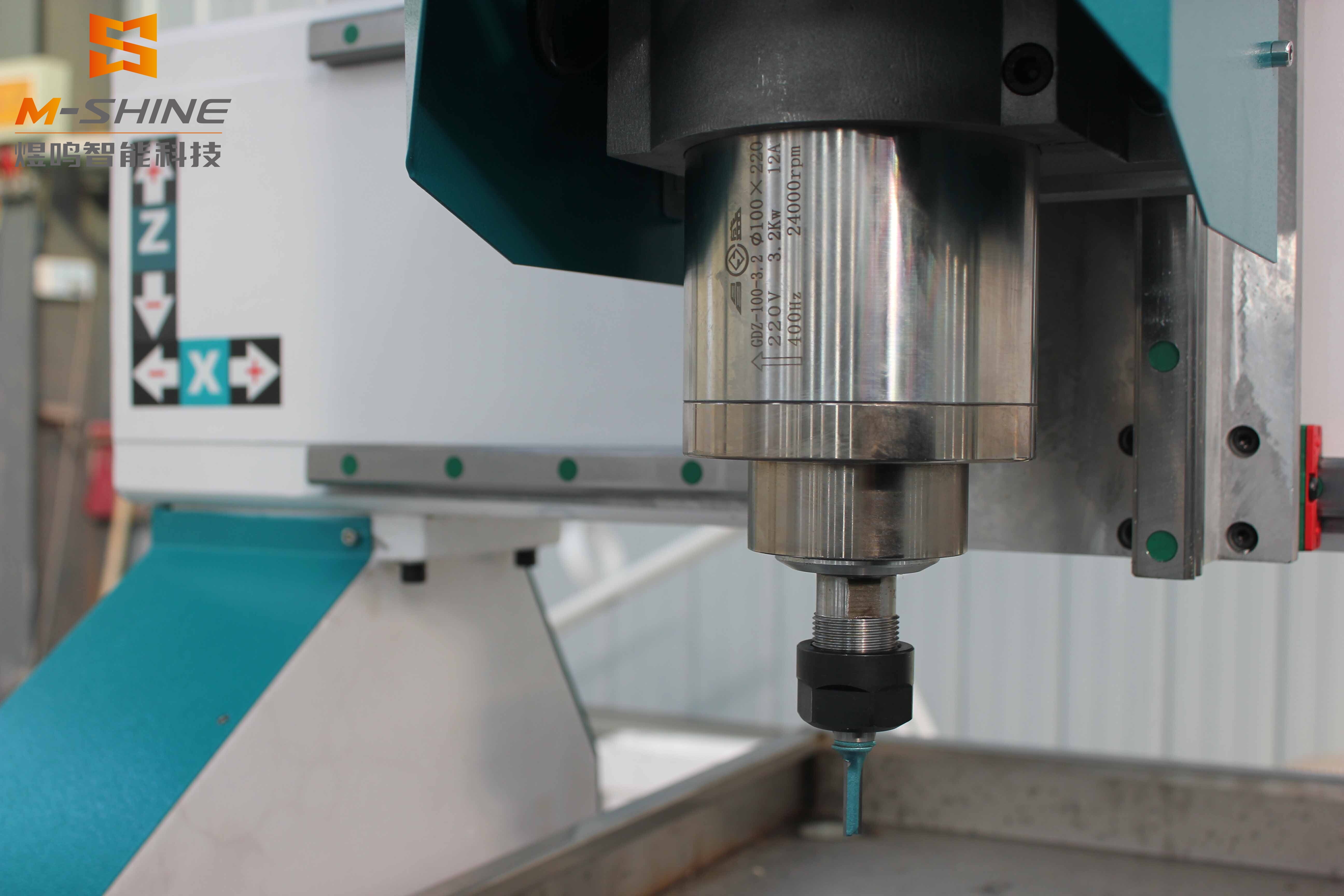

4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

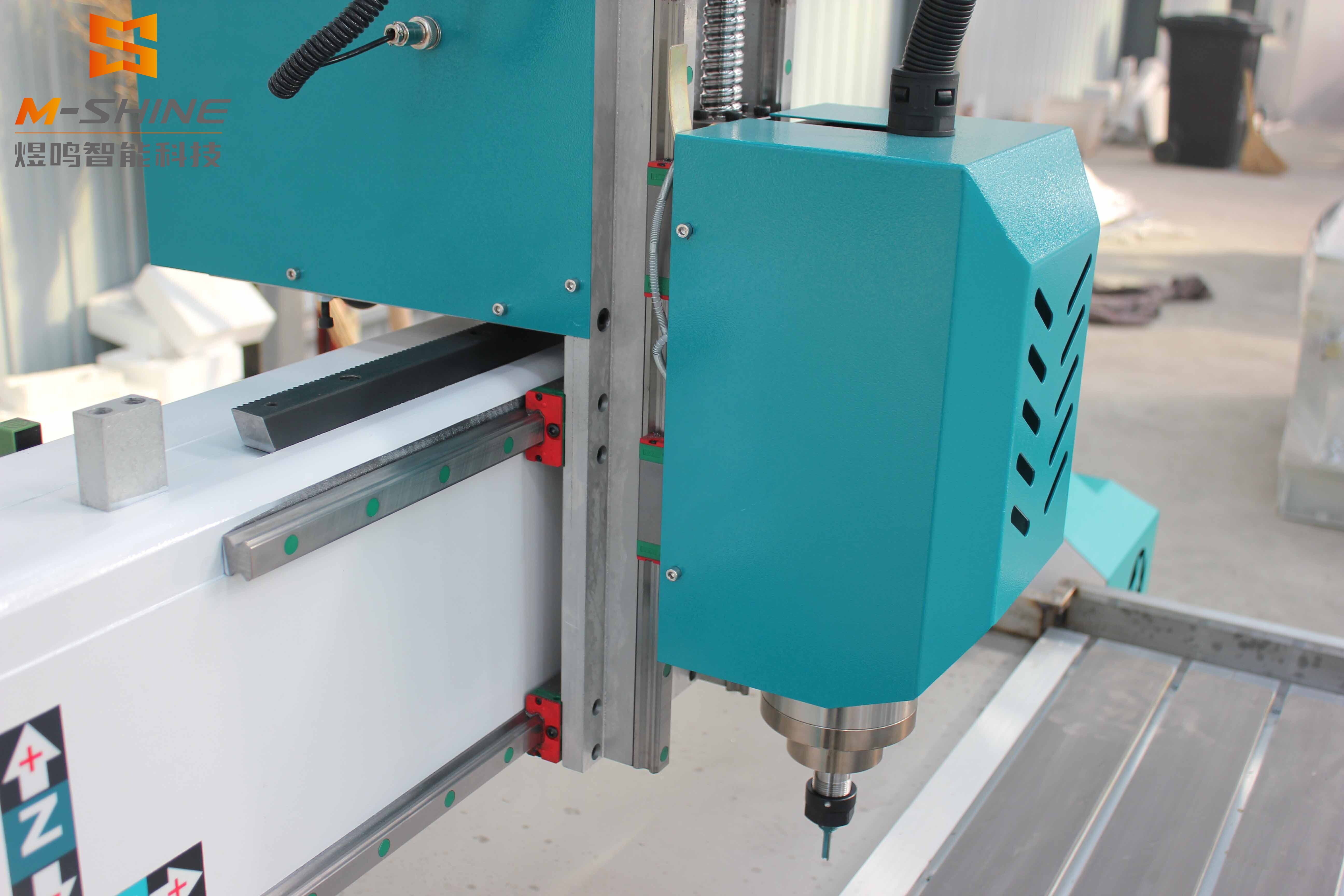

5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

Product Description:

1.High temperature tempering treatment, welded steel tube T- type machine bed and gantry, high rigidity, bearing strength better

2.Y axis with double Leadshine stepper motor and driver, moving stably.

3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.

4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

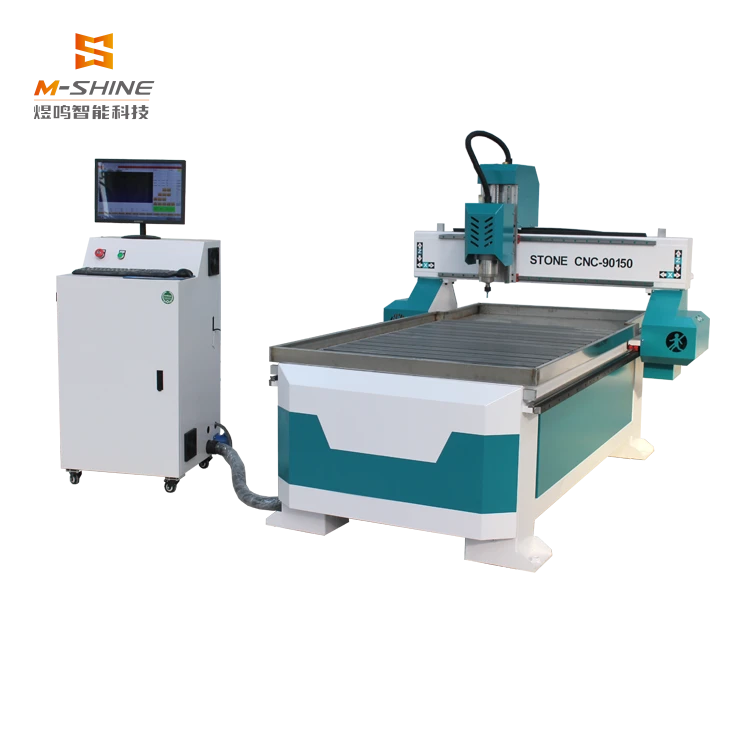

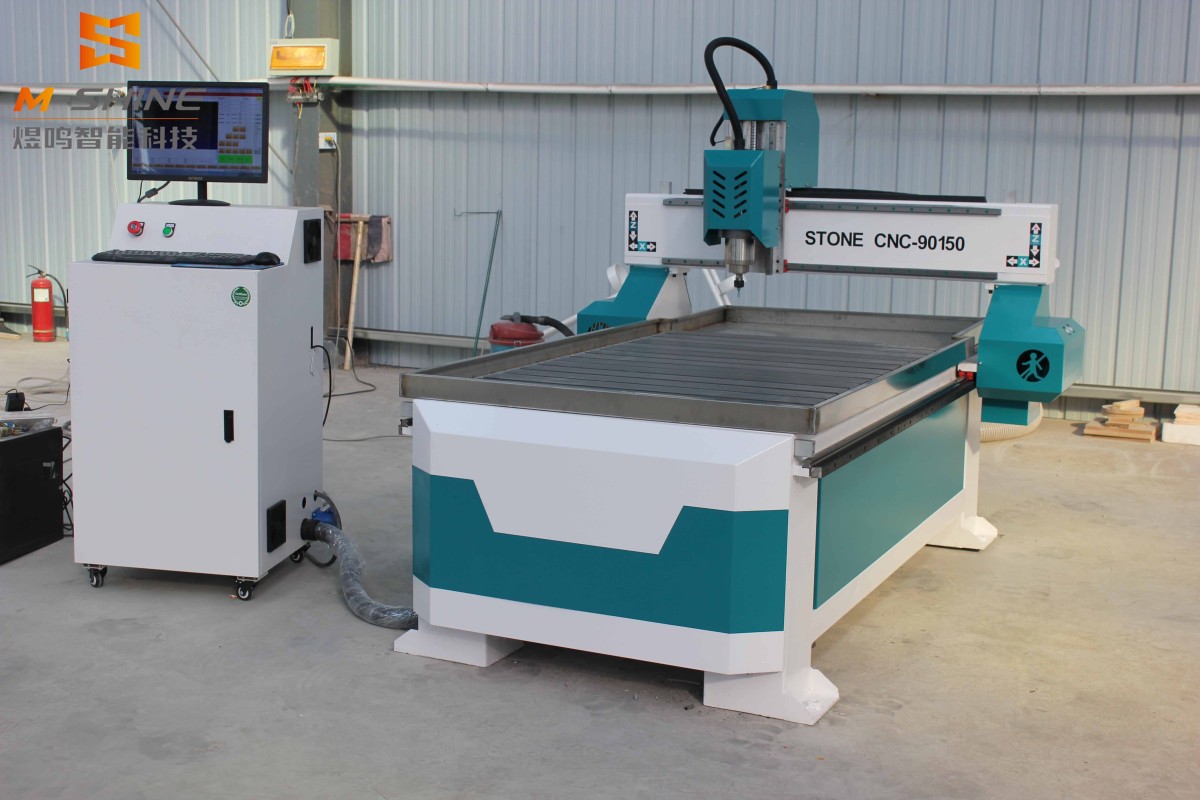

Machine Picture:

Technical Details:

90150 Stone Carving Machine
Technical Parameters
Working Area(XYZ)	900MM1500MM200MM
Spindle speed	0-24000/MIN
Spindle Power	3.5kw water spindle(4.5KW/5.5KW/6KW)
Tool Magazine	one
Motor	Stepper motor 450B(Optional:servo motor)
Control System	xingduowei /NC studio, computer cabinet(March3/DSP Control system)
Inverter	3.7 kw inverter

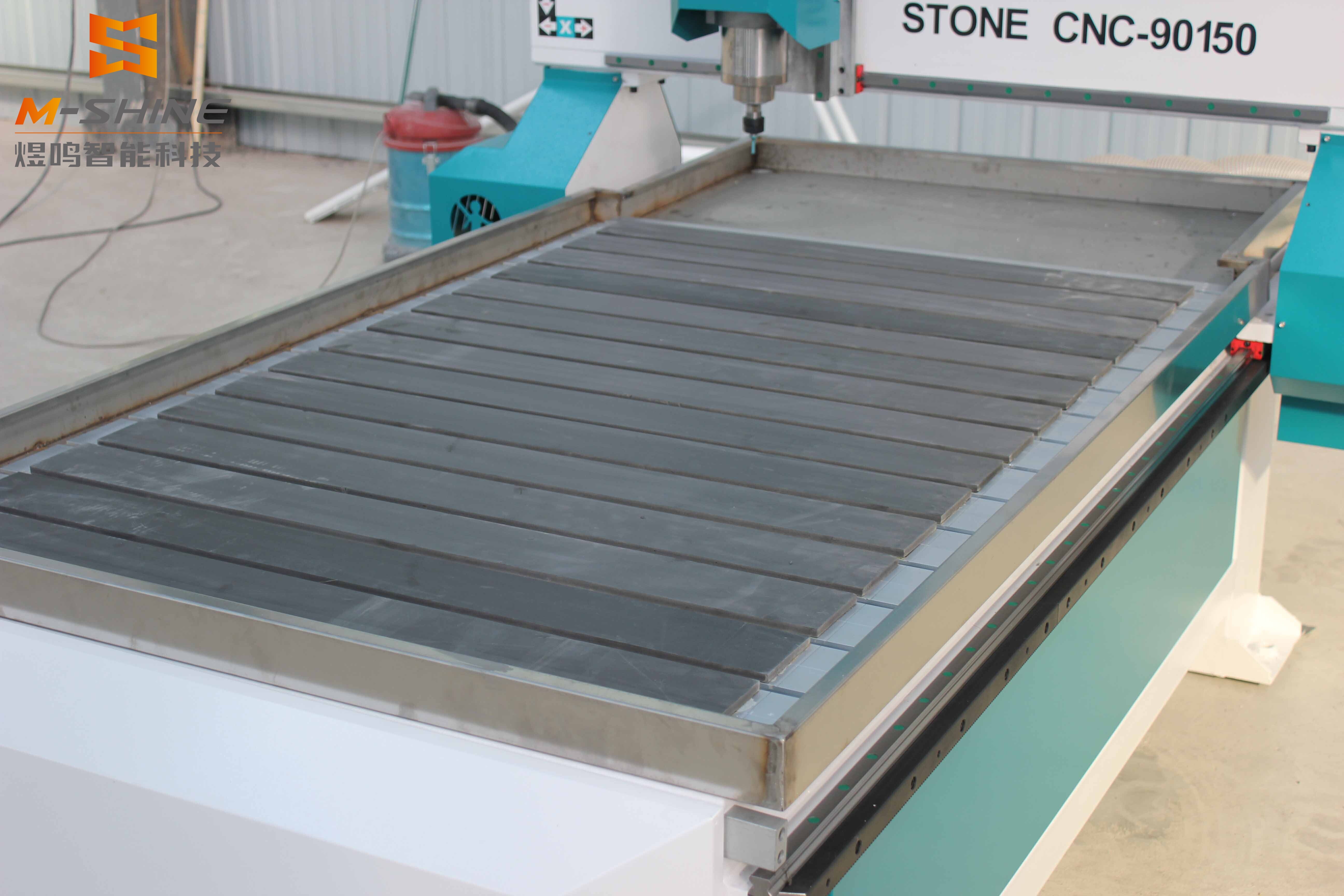

Vacuum Machine Table	T slot machine table(Vacuum Machine Table)
Dust Collector	Optional
Driver	Matching servo motor driver
Tool changing speed	Zero second switch
The transmission track	Genuine original 25 square gauge
Slider	Genuine original 25 slinder
Ball screw	TBI original 2510 Ball screw
Cable	Highly flexible shielded towline cable

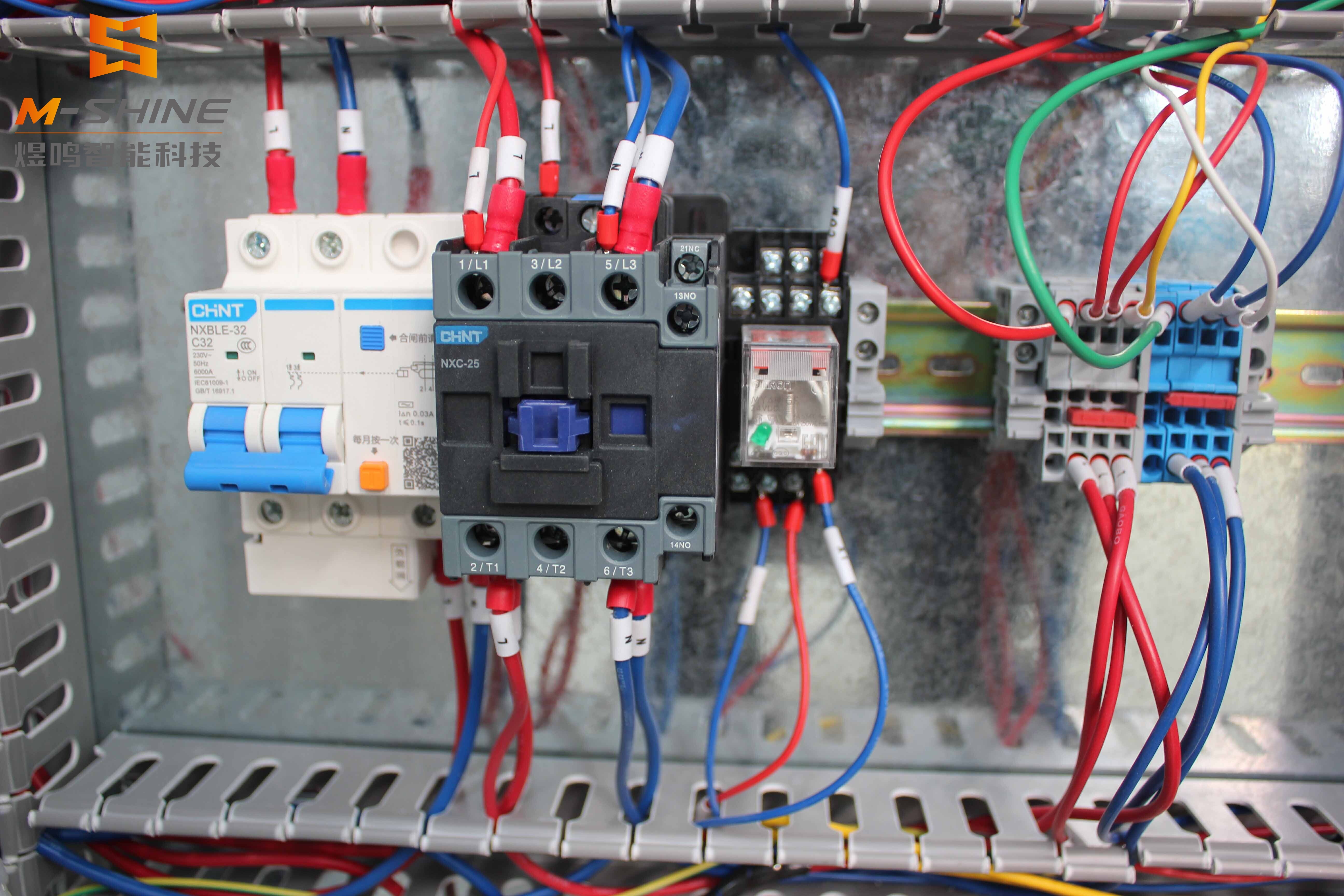

Electrical components	Genuine original Chint
Empty speed	36000MM/MIN
Maximum working speed	13000MM/MIN
Bed structure	Steel welding bed (five-sided milling drilling accuracy 0.02mm)
Gantry	Machining process of synchronous beam bed with thick-walled square tube and steel strip for beam.Column integral casting structure does not deform for a long time
Electric control operation cabinet	patented cabinet series, fully sealed intelligent operation cabinet
Voltage	220v/380v
Net Weight	980kg
Gross weight	1080kg
Wooden Box	We Provide Standard Export Wooden Box
Machine size	212017501850mm
Warranty	1 Year
Optional parts	Software in CD, Controlling Card (PCI card), Engraving And Cutting Tools, Allen Keys, Wrenches for Collet locknut, Data Wire, Power Line, Brush, Spanner and Clamp. (These tools all free to you)

FAQ:

Jinan m-shine Brand CNC Panel Saw, providing various size and models. With 13 years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.

Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.

Q5. Can I visit your factory?

Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?

For standard machine, about 15 working days; For customized machine, about 20 working day.

Q7.MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
