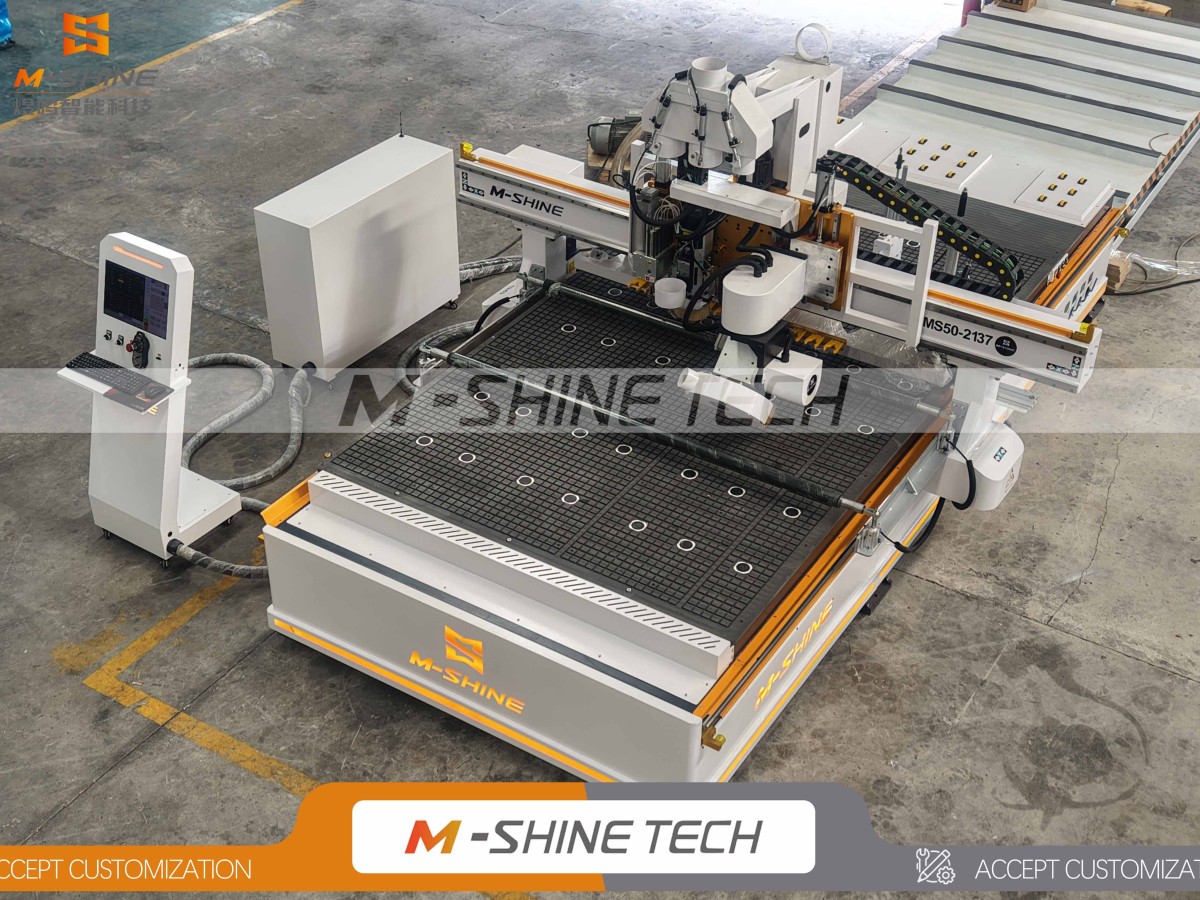

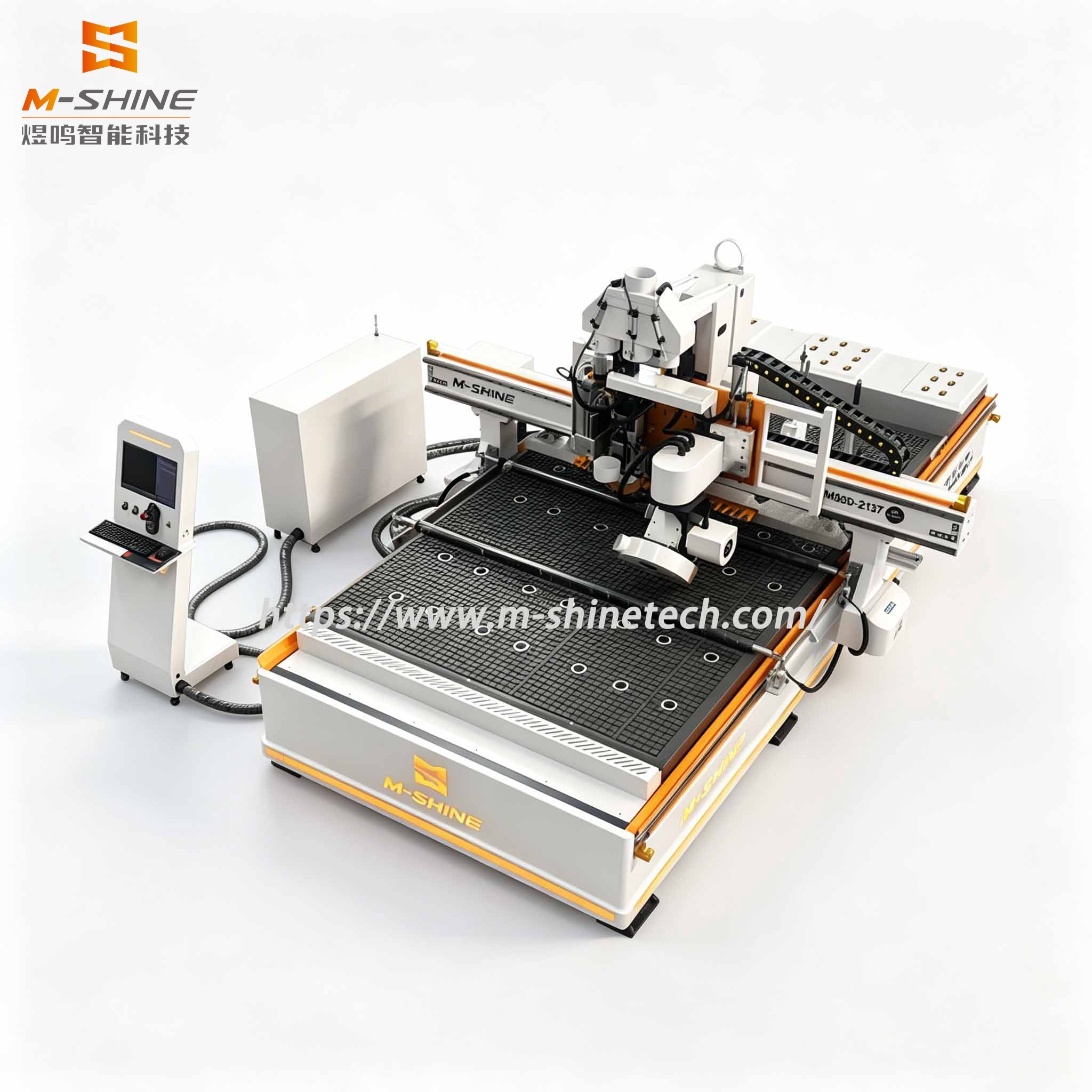

The new MS50-2137 CNC Nesting Machine features a working travel of 2100×3700×200mm, ideal for large-panel whole-house customized furniture processing. Its head is integrally cast from 75mm thickened cast aluminum, fitted with a 9KW HQD automatic tool change spindle, 4×5 drill bank and 360° servo rotary bevel saw blade. Equipped with a 12–16-position linear ATC, it completes cutting, drilling and beveling in one setup. It adopts Taiwan Syntec control system, full set of Leadshine 1500W servo motors & drives and dual export-grade Fuling inverters. The transmission system consists of XYZ-axis HIWIN 30mm silent linear guides, Z-axis TBI 3210 ground ball screws and XY-axis YYC hardened helical rack & pinion, paired with Japan Shimpo precision reducers for precise, low-noise and stable operation. The 8mm thick welded frame undergoes annealing, sandblasting and five-axis gantry milling, delivering robust rigidity with a total machine weight of 3000KG. It comes with heavy-duty pneumatic dual press rollers, 4+3 encircling positioning cylinders, vacuum feeding plus automatic pusher. A 111 KW water-circulating vacuum pump matches the multi-zone double-layer worktable with optional vacuum/clamp dual-use design. Featured with auto timed lubrication, auto tool setting and one-touch startup, the machine uses CHINT electric parts and Huadeli pneumatic components, with 3-year warranty for shielded flexible cables and multi-layer safety alarm protection. Its rapid traverse hits 1400mm/min and cutting speed ranges 13000–18000mm/min, with total power around 48KW and customizable working voltage, perfectly suited for mass production of panel furniture worldwide.

Configuration Details：

Product Details：

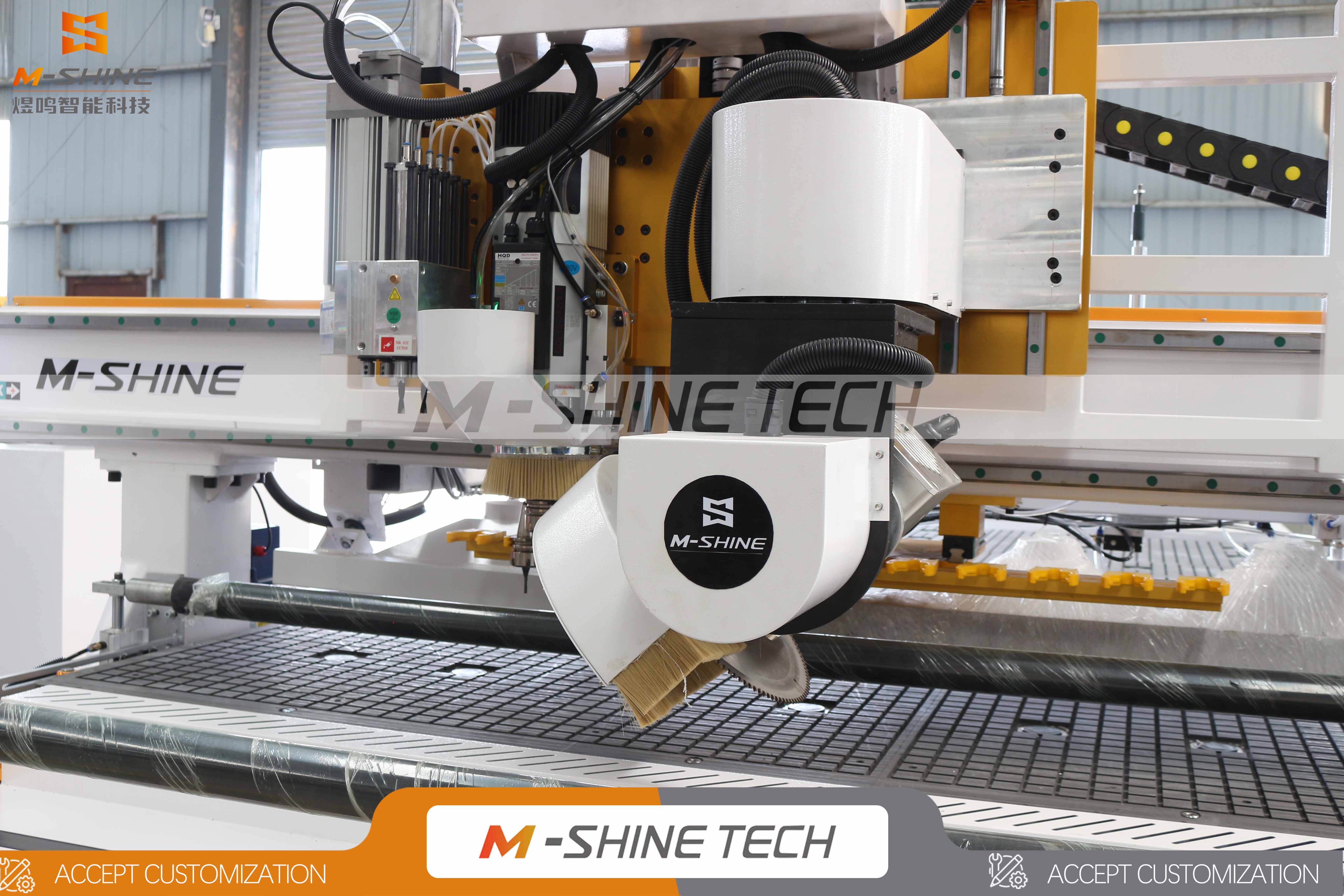

The MS50-2137 ATC CNC Nesting Machine equipped with Chinese 9KW HQD tool changing spindle (rotational speed 0 - 24000/min) + HQD 4*5 drill package + 360 degree+ rotating servo bevel cutting saw blade Integrates milling, drilling and bevel cutting in one head, one-step forming to boost efficiency and expand processing range.

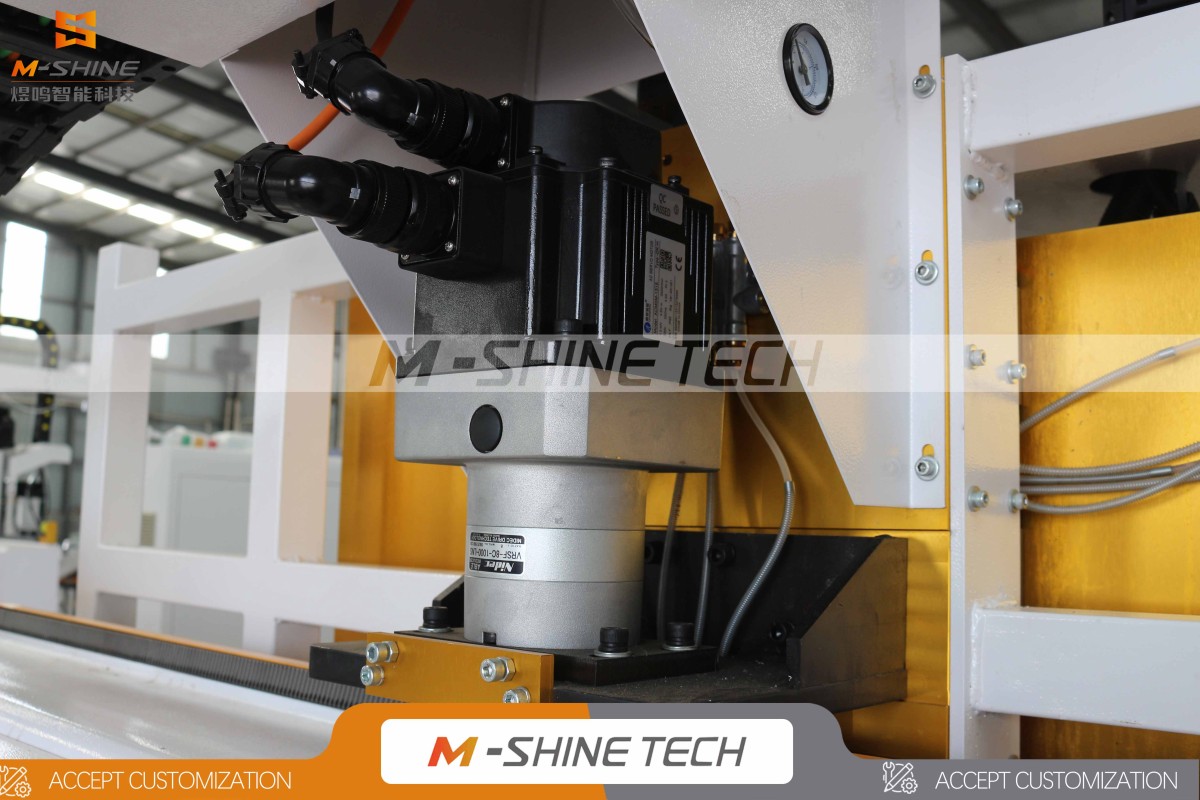

The MS50-2137 ATC CNC Nesting Machine equipped with Japanese SHIMPO high-precision reducer Ensures smooth transmission, low backlash, stable running and improves cutting precision & service life.

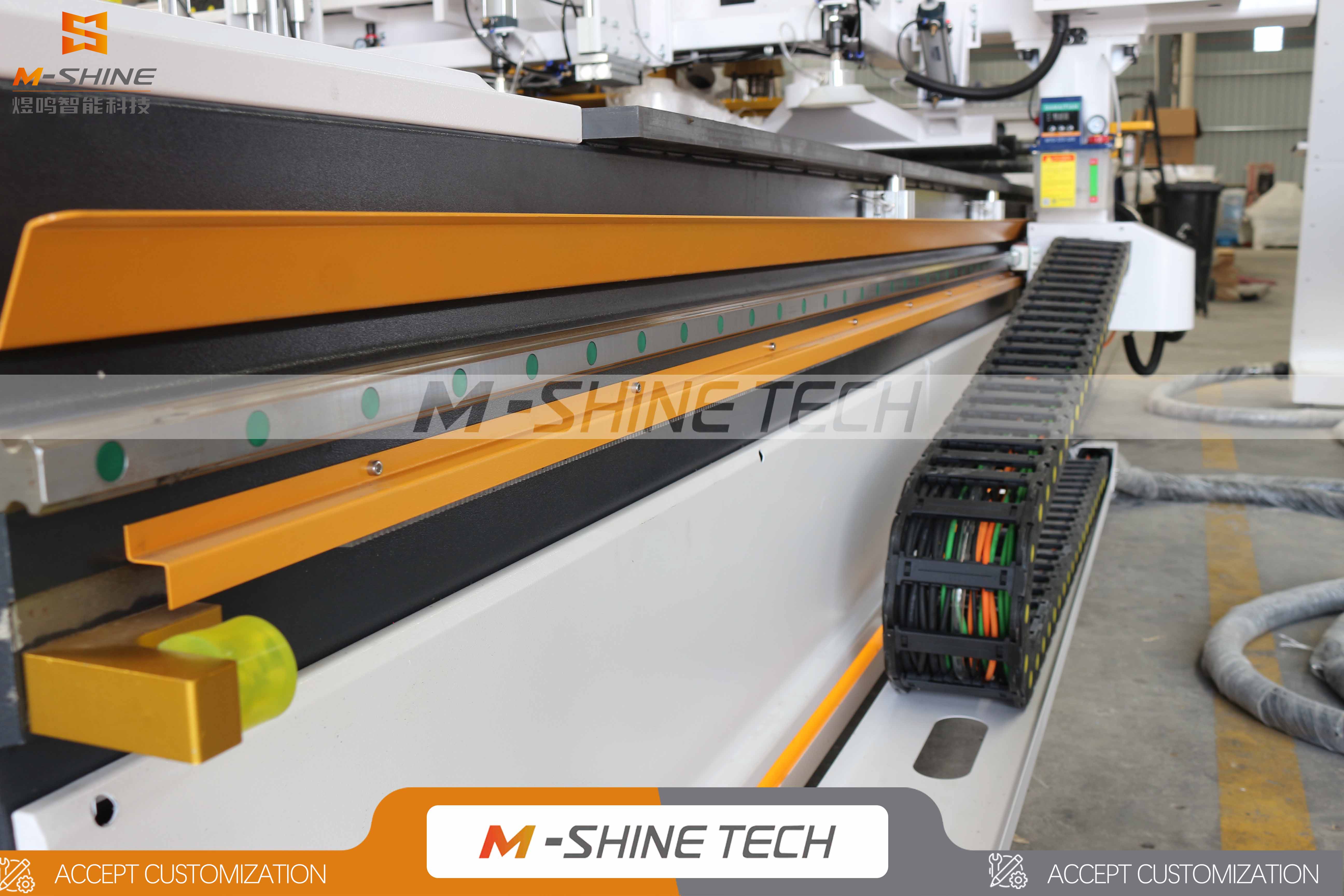

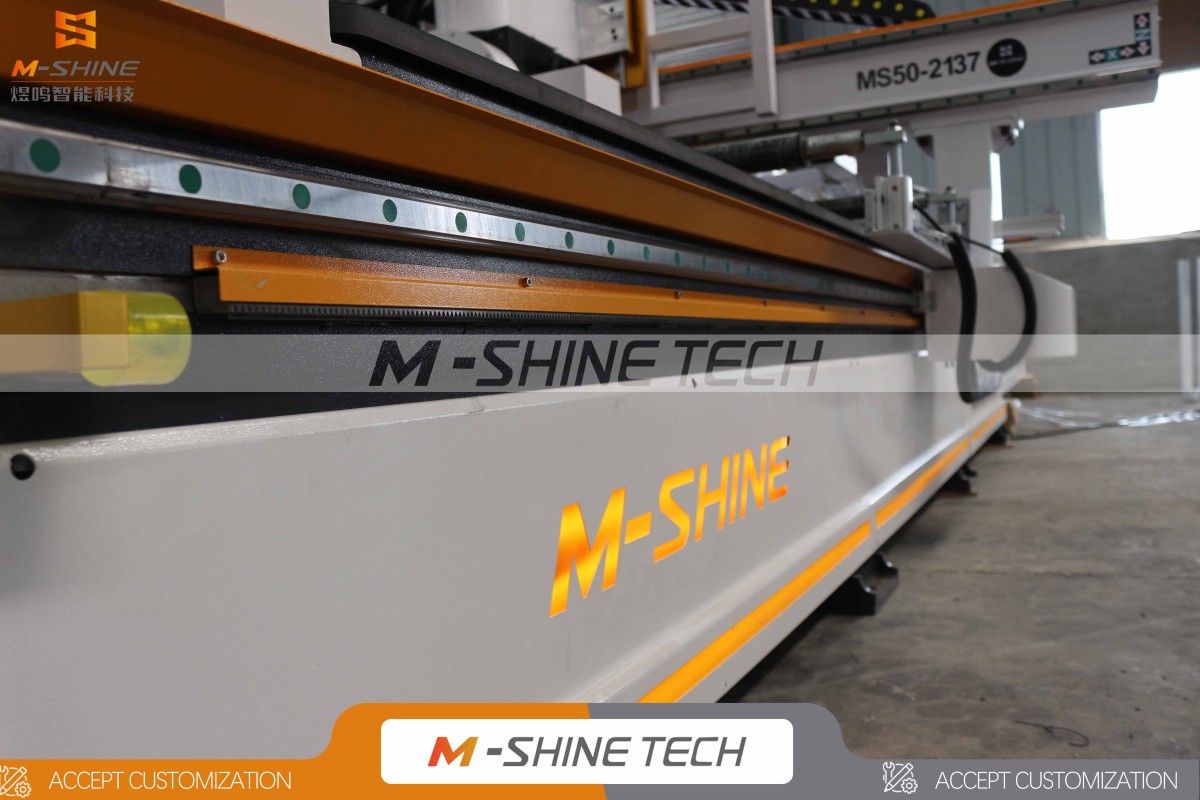

The whole MS50-2137 ATC CNC Nesting Machine equipped with  Taiwan HIWIN 30MM high-precision silent linear guide rails for the three axes, TBI3210 grinding screw and original support for the Z-axis, and YYC hard toothed helical gear rack and pinion for the XY axis. The transmission is precise, low-noise, stable, wear-resistant and durable.

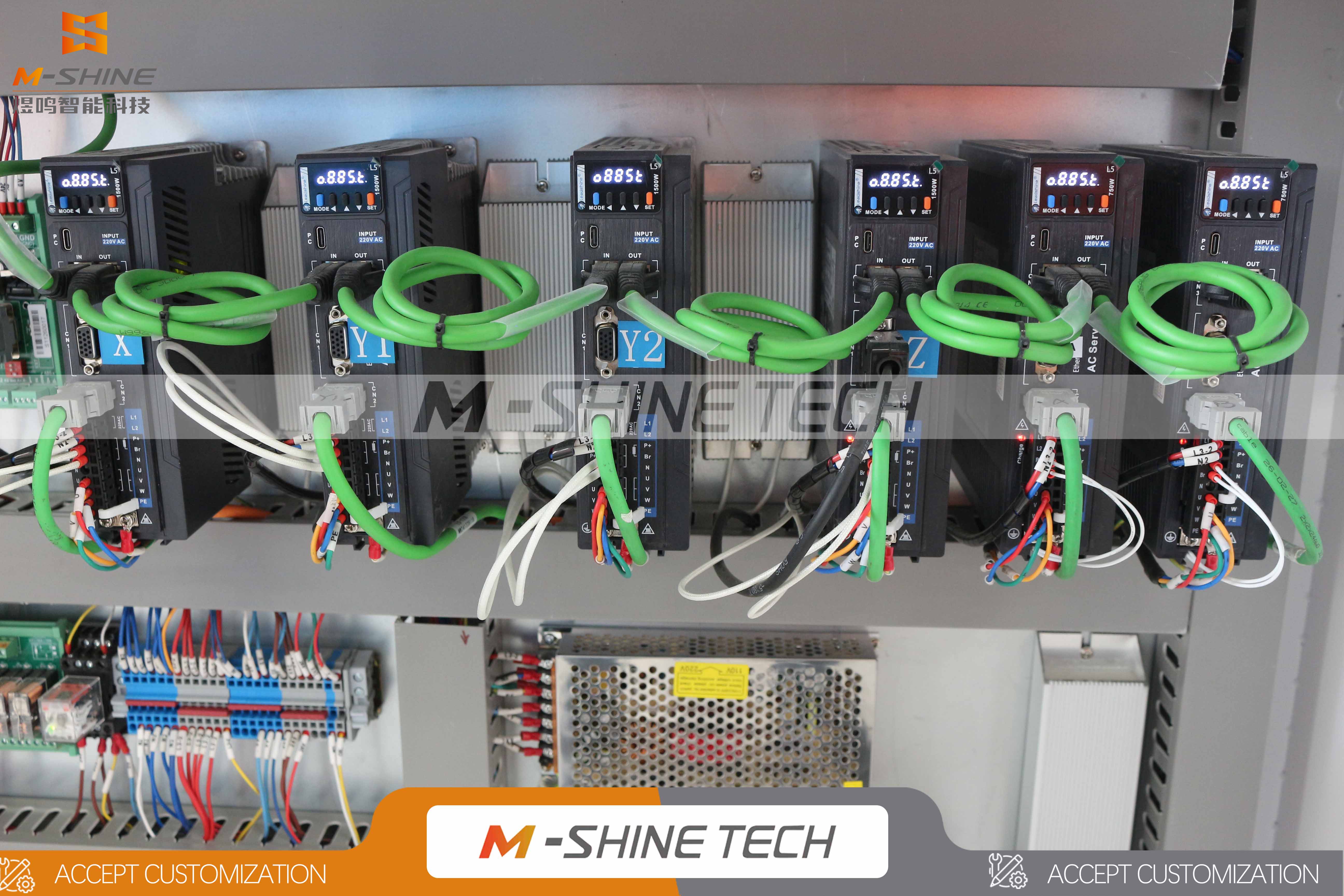

The MS50-2137 ATC CNC Nesting Machine equipped with  Leadshine 1500W driver and motor are compatible with this 5-axis linkage equipment, delivering high speed and precision with excellent resistance to load fluctuation. Ample hardware current margin of the drive avoids overload alarms during 5-axis synchronous interpolation and ATC CNC  dynamic load changes, ensuring stable high-efficiency operation.

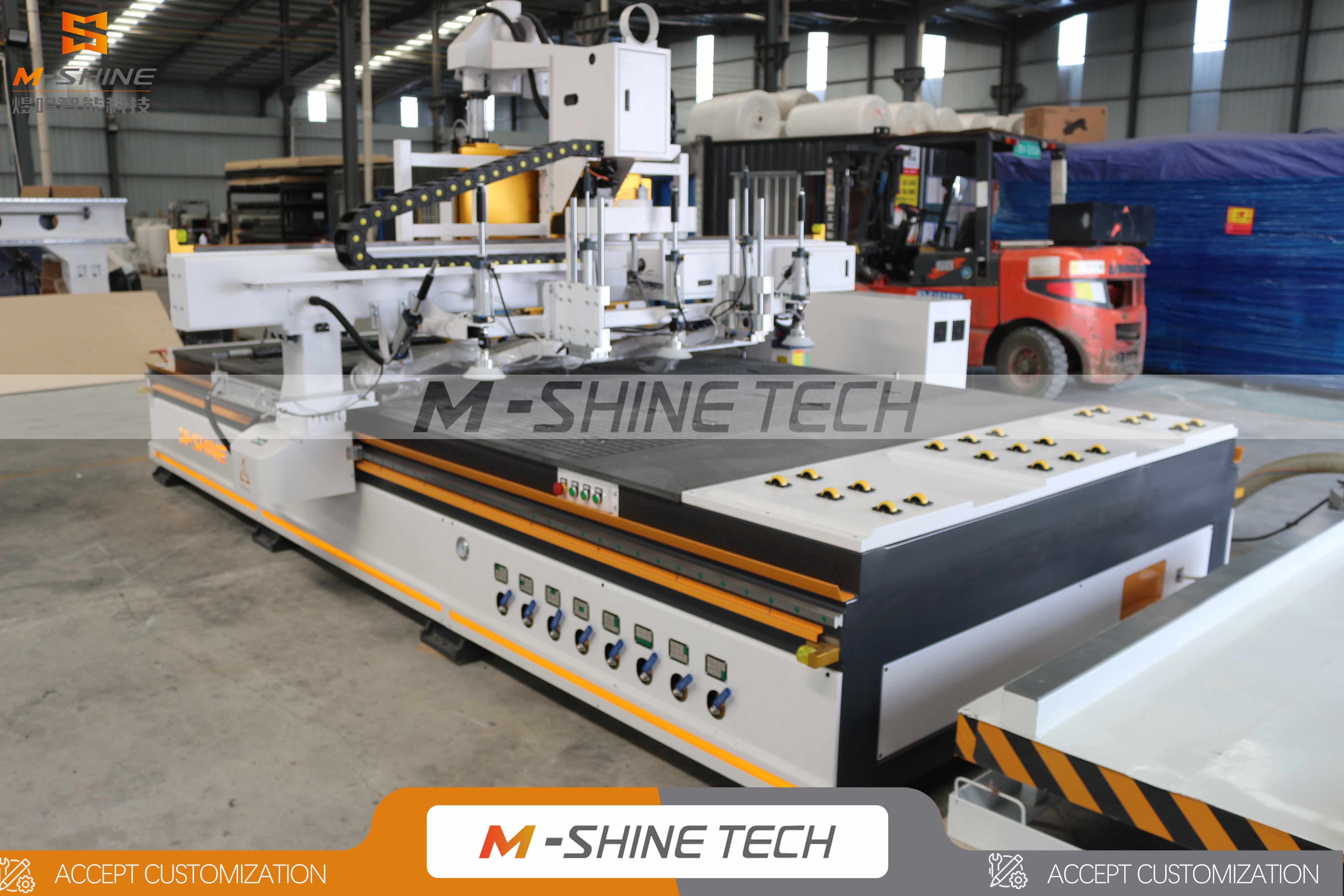

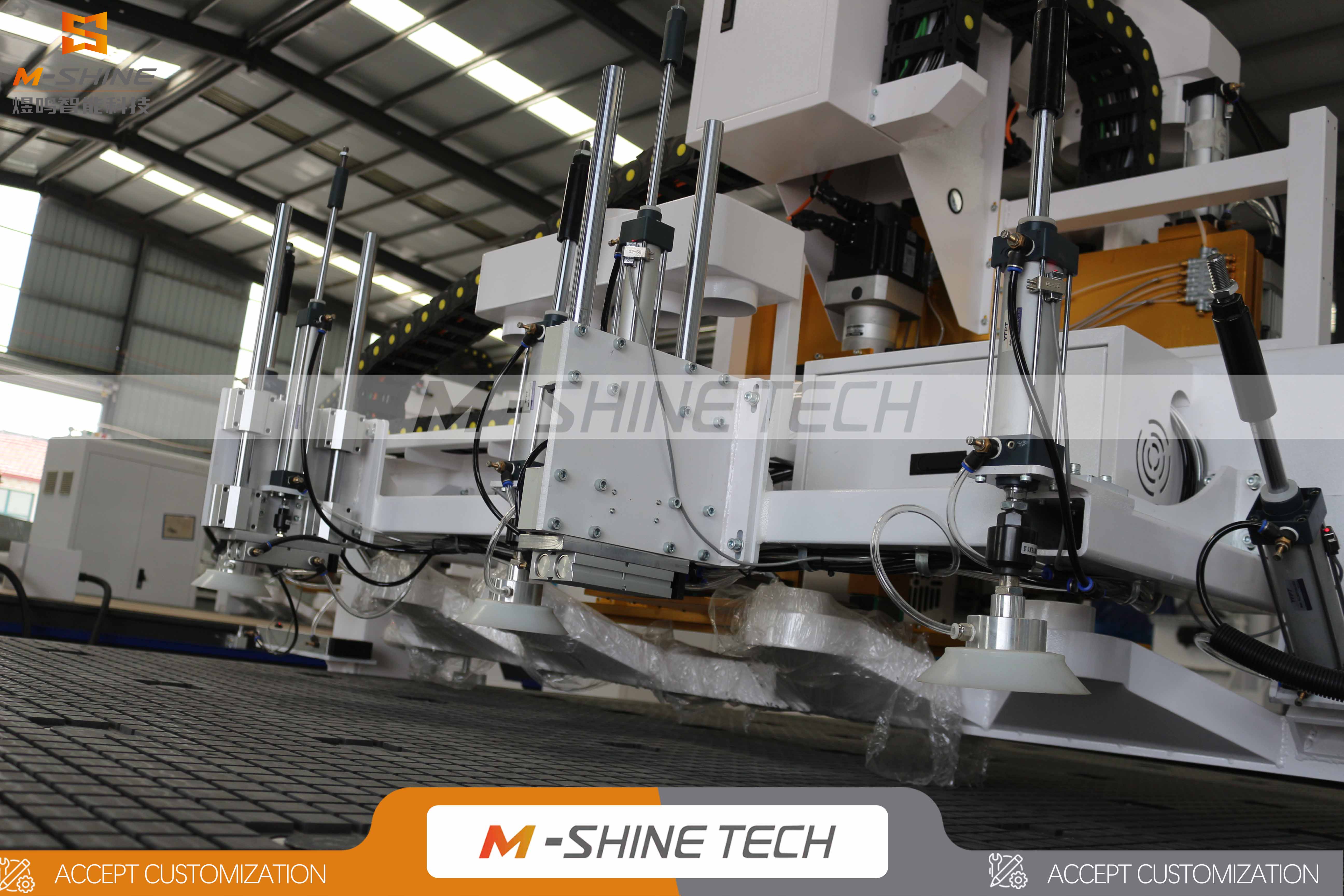

The MS50-2137 ATC CNC Nesting Machine equipped with Suction cup material grabbing+automatic material pushing function Realizes automatic feeding & pushing, saves labor, avoids positioning deviation and boosts processing efficiency.

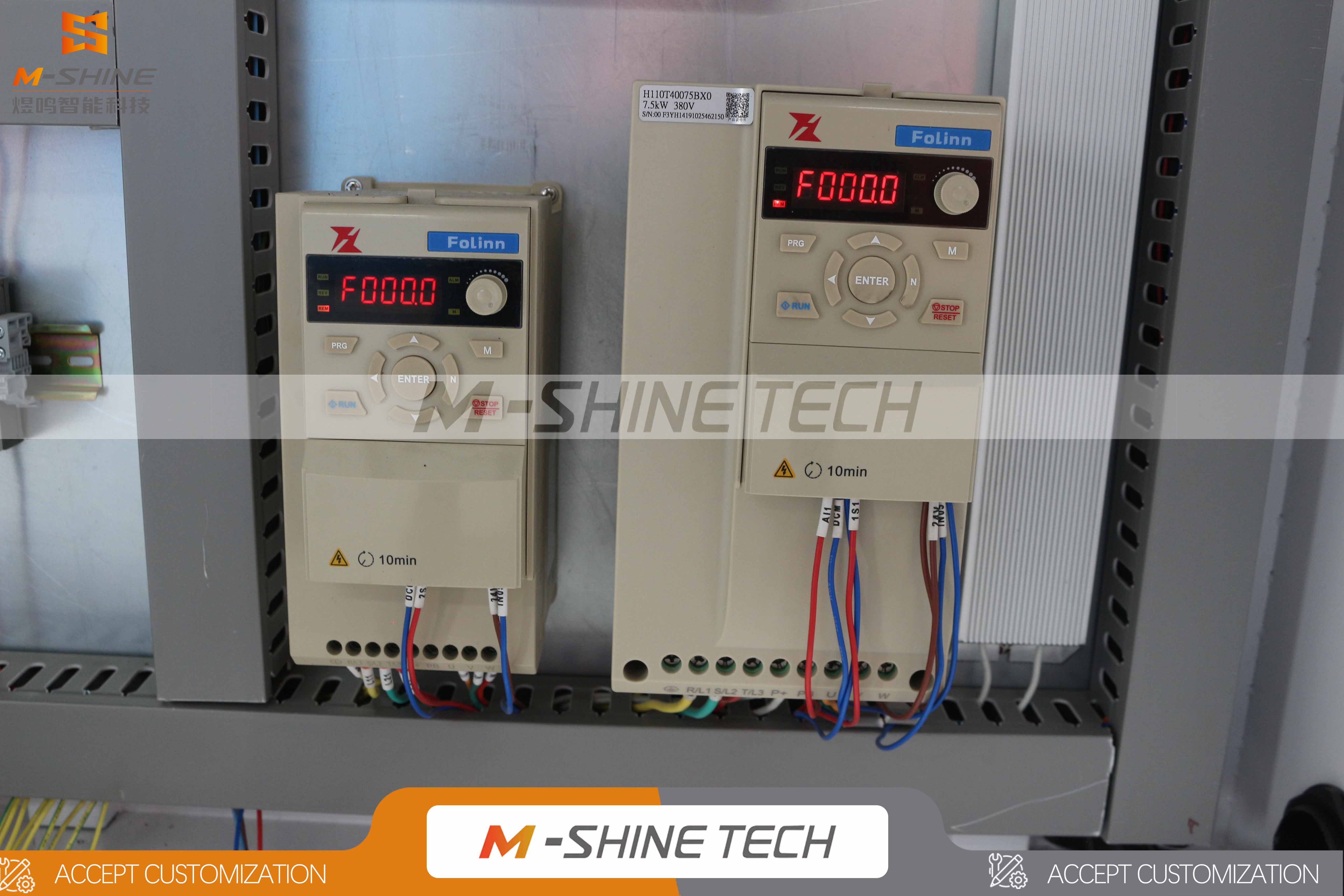

The MS50-2137 ATC CNC Nesting Machine equipped with  top brand China Fuling 11kw+7.5KW export specific dual frequency converters, they respectively control the spindle and accessories, ensuring smooth speed regulation and unstable voltage resistance, adapting to power supply environments in multiple countries, and ensuring long-term stable operation of the equipment.

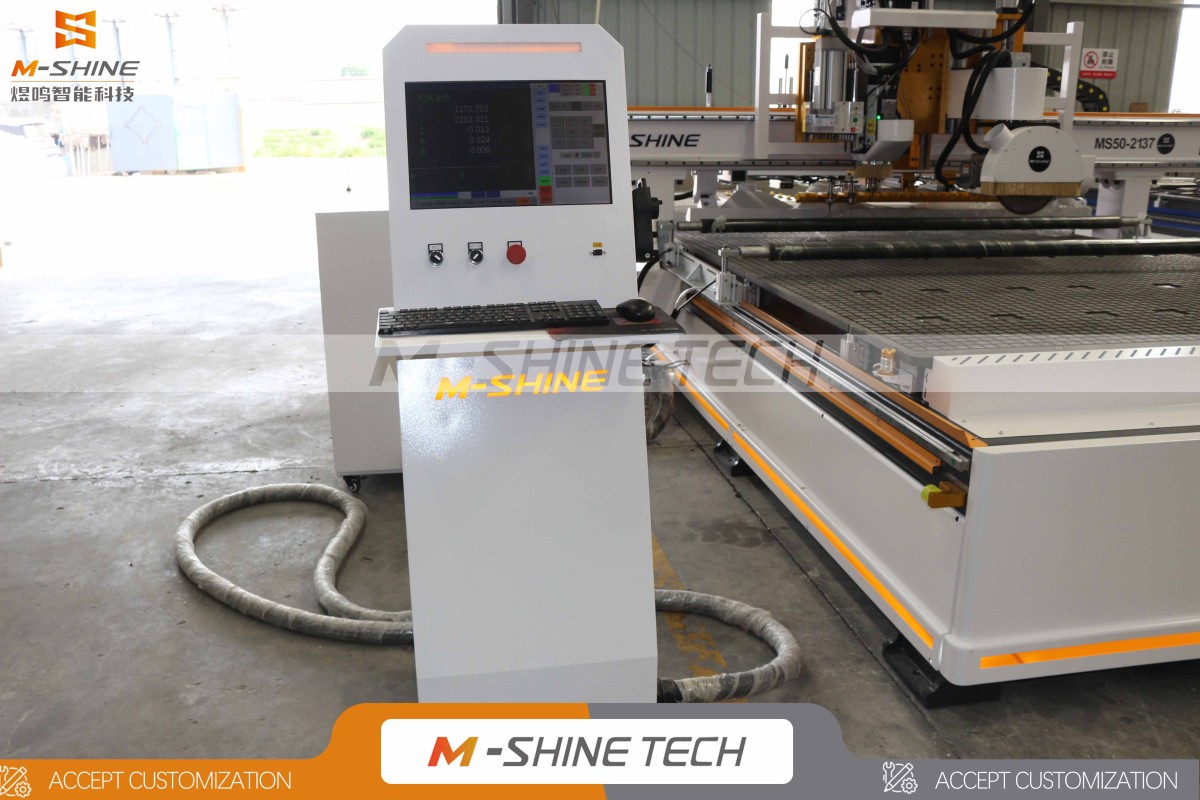

The MS50-2137 ATC CNC Nesting Machine equipped with  Taiwan SYNTEC CNC system supports stable 5-axis linkage & ATC CNC function with high machining precision. Open architecture fits Leadshine servo perfectly, featuring intuitive operation, fast program pre-read and anti-interference capability. It boasts favorable cost performance and convenient after-sales maintenance for long-term stable production.

The MS50-2137 machine adopts partition independent point suction control on its adsorption worktable fitted with heavy-duty pneumatic double pressing rollers. The machine bed is welded from 8mm thick steel plates, integrally finished through stress-relief annealing, sandblasting and 5-axis gantry milling for robust rigidity and stable structure.

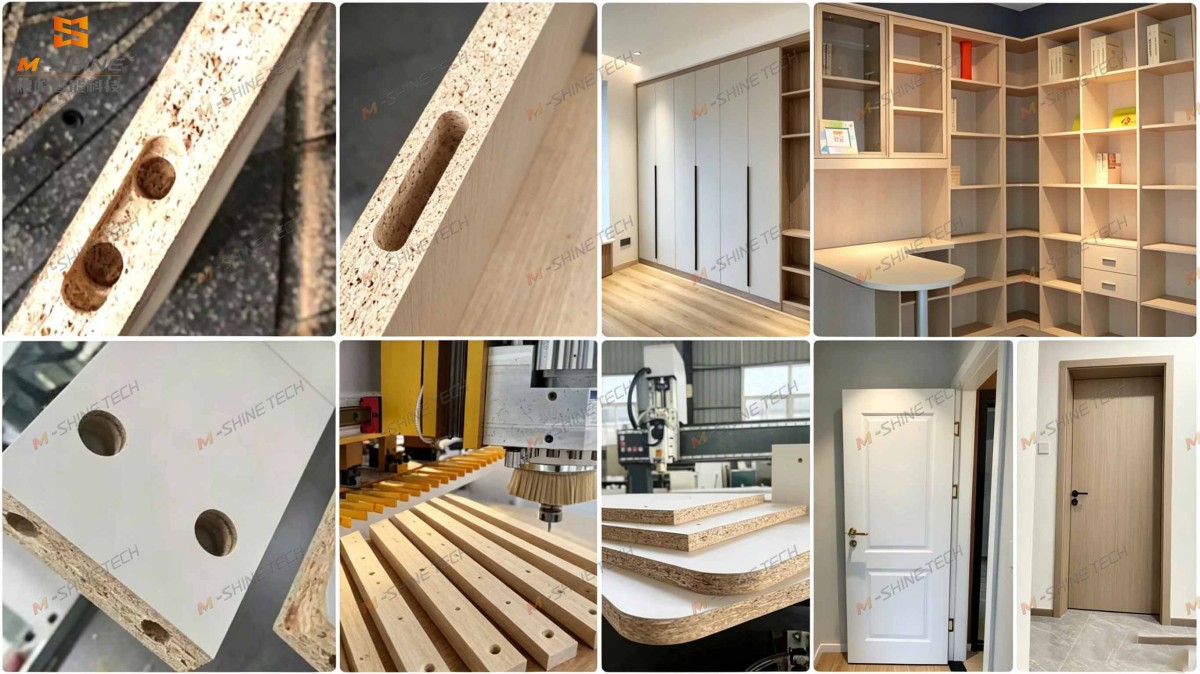

Processed Products：

1. Custom whole-house cabinet panels: Cut, groove and drill panels for wardrobes, cabinets, shoe cabinets, wine cabinets and bookcases. Available for mass standardized production and irregular customized orders.

 2. Various decorative door panels: Wood composite, ecological and paint-free door panels. Support straight cutting and 360° side bevel cutting to realize chamfer craftsmanship for door edges.

3. Irregular panels for interior fitting: Partition boards, trim strips and shaped boards for whole-house decoration. Compatible with particle board, MDF, multi-layer board and ecological board, enabling efficient production for small & medium furniture manufacturers.
