Oscillating Knife/Vibration Knife is an advanced CNC cutting technology that achieves precise cutting of materials through high-frequency vertical vibration. Unlike traditional blades, vibrating blades cut with high-frequency small amplitude vibrations of thousands of times per minute (usually 20000-40000 times/minute), with an adjustable amplitude range typically between 0.1-2.5mm.

This technology was first developed by a German company in the 1990s and was initially applied to automotive interior processing. It has now developed into one of the key technologies in the field of digital manufacturing. Modern vibrating knife systems typically integrate precision servo control systems, intelligent pressure regulation, and real-time tool monitoring functions, with cutting accuracy up to ± 0.1mm.

Core technology principle of vibration knife

1. Mechanism of vibration occurrence

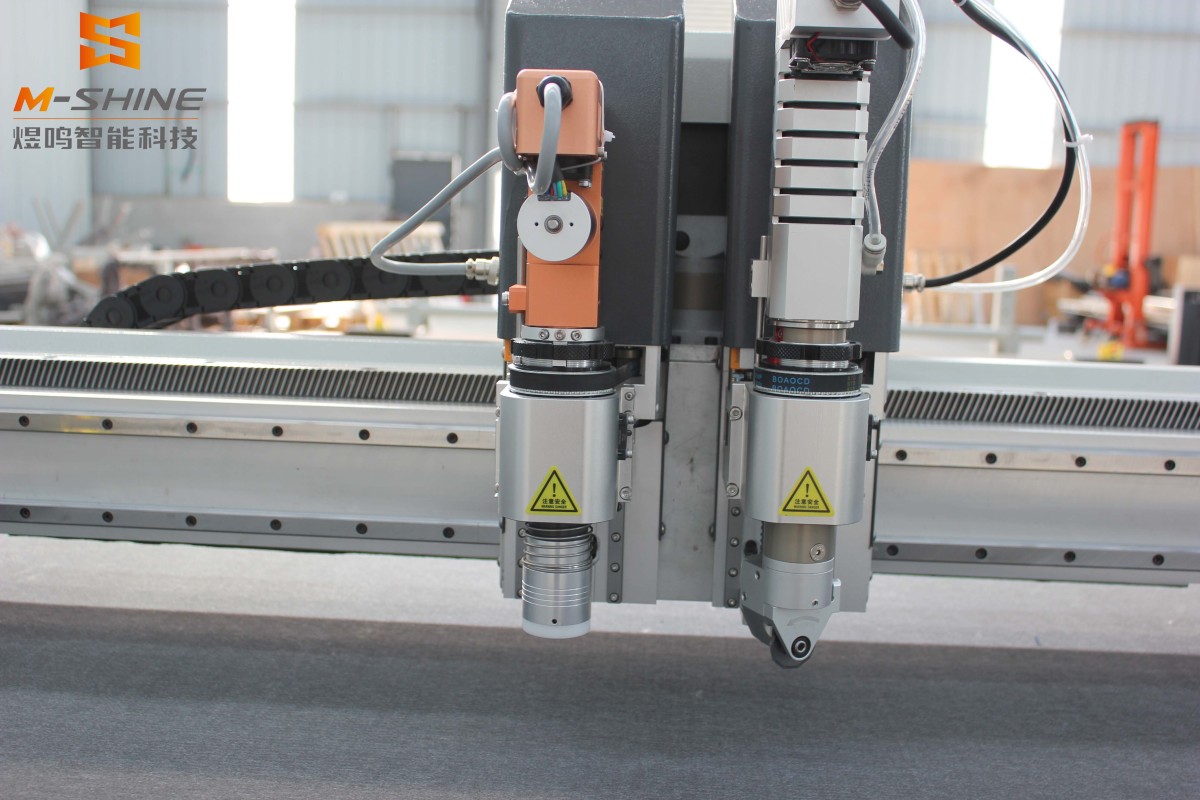

The core of the vibrating knife is the electromagnetic vibration system, which is driven by high-frequency electromagnets to make vertical reciprocating motion of the blade. Advanced piezoelectric ceramic drivers can achieve vibration frequencies up to 50kHz, and with precision guide rail systems, ensure the linearity of the vibration trajectory. The servo motor controlled feed system and vibration system work together to achieve a composite motion of "vibration cutting+feed movement".

2. Analysis of Cutting Mechanics

Vibration cutting essentially discretizes the continuous cutting process into thousands of small impacts:

-Blade impact speed can reach 2-5m/s

-The single impact energy is about 0.01-0.1J

-Microscopic cracks are generated and propagate in materials under high-frequency impact

This mechanism reduces cutting force by 60-80% compared to traditional methods, with a typical cutting pressure of only 5-50N.

3. Intelligent control system

The modern vibrating knife system includes:

-Multi axis motion control card (supporting EtherCAT bus)

-Real time vibration monitoring (sampling rate ≥ 1kHz)

-Adaptive pressure regulation (resolution 0.1N)

-Tool wear detection (based on current/vibration spectrum analysis)

Typical application areas of vibration knives

1. Composite material processing

-Carbon fiber prepreg: cutting speed 3-8m/min, no delamination

-Kevlar bulletproof material: capable of processing thicknesses up to 50mm

-Fiberglass reinforced plastic: Cut quality Ra<6.3 μ m

2. Precision machining of flexible materials

-Automotive interior: leather cutting accuracy ± 0.2mm

-Aviation carpet: adjustable inclined cutting angle of 30-60 °

-Clothing industry: Multi layer cutting (up to 300 layers of cotton fabric)

3. Special material processing

-Graphene film: pollution-free cutting

-Lithium ion battery separator: no burrs on the cut

-Medical silicone: sterile cutting environment

 Detailed explanation of the advantages of vibration knife technology

1. Improvement of cutting quality

-Surface roughness improved by 40-70%

-Heat affected zone<50 μ m (1/10 of laser cutting)

-No material melting or chemical denaturation

2. Environmental characteristics

-Noise<75dB (1/3 of traditional cutting)

-No harmful gas/dust generation

-Energy consumption is only 15% of that of laser equipment

 Development Trend of Vibration Knife Technology

1. Intelligent upgrade

-Machine vision automatic positioning (accuracy 0.02mm)

-Digital twin cutting simulation

-AI driven parameter optimization

2. Composite processing technology

-Vibration knife+laser thickness measurement (real-time adjustment of cutting depth)

-Multi blade collaboration (efficiency increased by 300%)

-Vibration cutting+hot air shaping (integrated processing)

3. Research and development of new cutting tools

-Diamond coated cutting tools (life extended by 8-10 times)

-Intelligent variable amplitude blade (automatically adjusts amplitude from 0.1-5mm)

-Nanostructured shock-absorbing handle (reducing vibration loss by 40%)

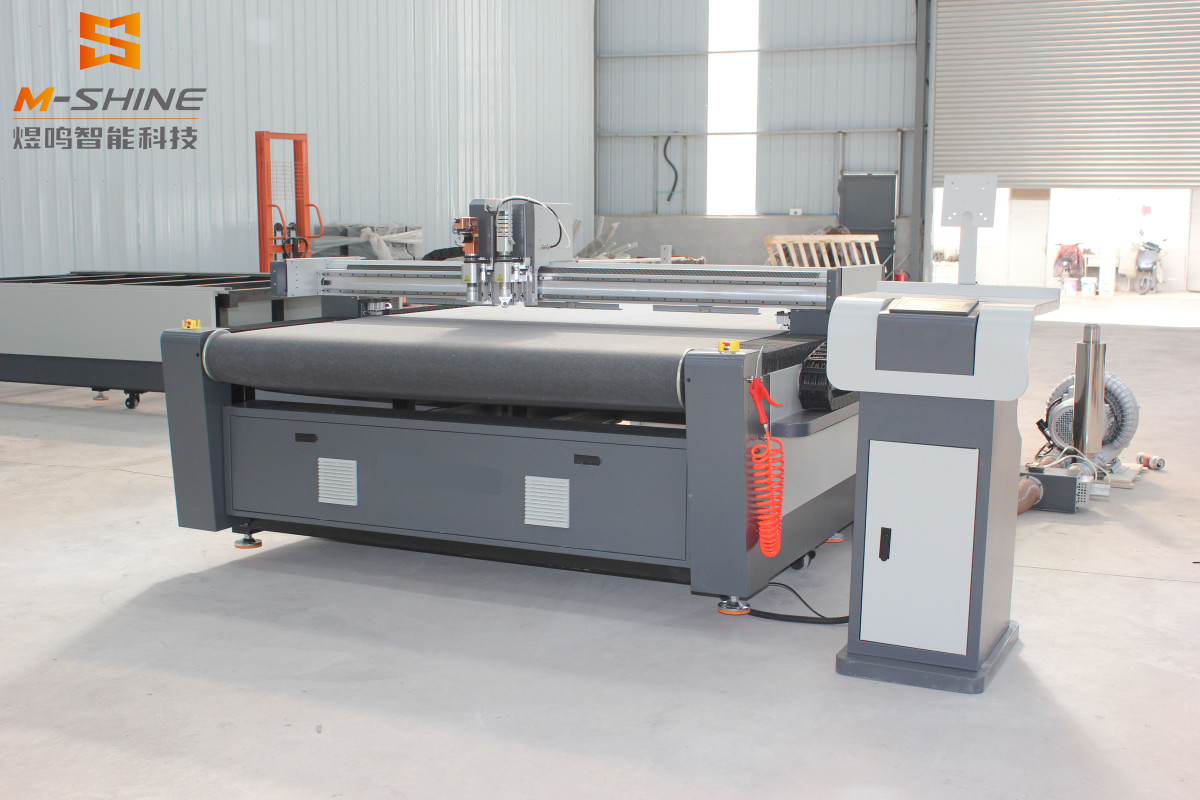

Technical parameter guide for CNC Knife Cutter Machine

Key parameter considerations:

1. Vibration frequency range: preferably 30-50kHz broadband system

2. Maximum cutting thickness: should be 20% larger than the actual demand

3. Positioning accuracy: at least ± 0.05mm

4. Repetitive accuracy: Requires ≤± 0.02mm

5. Control system: Supports G-code and mainstream CAD formats

Key maintenance points for vibrating knives:

-Check the air source filtration device daily

-Lubricate the linear guide rail weekly

-Replace the coolant of the vibration generator every 500 hours

-Real time monitoring of tool wear index (TWI)
